Product Summary

 Applications:
 Switch Mode Power Supply ( SMPS )
 Uninterruptable Power Supply
 High speed power switching

Parametrics

Absolute Maximum Rating
ID @ TC = 25°C Continuous Drain Current, VGS @ 10V :11A
ID @ TC = 100°C Continuous Drain Current, VGS @ 10V :7.0 A
IDM Pulsed Drain Current : 44 A
PD @TC = 25°C Power Dissipation :170 W
Linear Derating Factor :1.3 W/°C
VGS Gate-to-Source Voltage ：± 30 V
dv/dt Peak Diode Recovery dv/dt： 6.9 V/ns
TJ Operating Junction and ：-55  to + 150℃
TSTG Storage Temperature Range
Soldering Temperature, for 10 seconds 300 (1.6mm from case )℃
Mounting  torqe,  6-32  or M3  screw  10 lbf?in (1.1N?m  ）

Features

Benefits:
 Low Gate Charge Qg results in Simple Drive Requirement
 Improved  Gate, Avalanche and dynamic dv/dt Ruggedness
 Fully Characterized Capacitance and Avalanche Voltage and Current

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

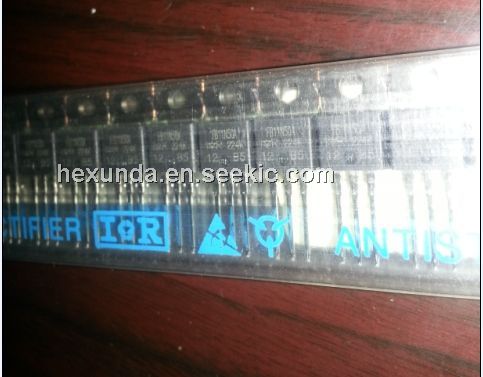

IRFB11N50A
IRFB11N50A
Vishay/Siliconix
MOSFET N-Chan 500V 11 Amp
Data Sheet
0-725: $1.93
725-1000: $1.85
1000-2000: $1.81
IRFB11N50APBF
IRFB11N50APBF
Vishay/Siliconix
MOSFET N-Chan 500V 11 Amp
Data Sheet
0-1: $1.07
1-10: $0.86
10-100: $0.77
100-250: $0.69
