KA1M0365R

KA1M0365R - Fairchild Power Switch(FPS) - Fairchild Semiconductor

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.57~0.65 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 10 :	0.65 / Piece
10 ~ 100 :	0.62 / Piece
100 ~ 1000 :	0.57 / Piece

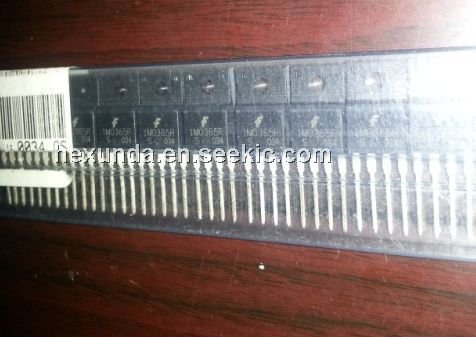

PartNumber:: KA1M0365R

Brand:: Fairchild Semiconductor - Fairchild | D/C: 00+

Availability:: Supply Ability: 10000/Month Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Chaney's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-05-27

From Other Seller

Part Number:KA1M0365R
US $0.57 - 0.65
Quantity:

piece

Product Summary

Description:The Fairchild Power Switch(FPS) product family is specially designed for an off line SMPS with minimal external
components. The Fairchild Power Switch(FPS) consist of high voltage power SenseFET and current mode PWM controller IC. PWM controller features integrated fixed oscillator, under voltage lock out, leading edge blanking, optimized gate turn-on/turn-off driver, thermal shut down protection, over voltage protection, temperature compensated
precision current sources for loop compensation and fault protection circuit. compared to discrete MOSFET and controller or RCC switching converter solution, a Fairchild
Power Switch(FPS) can reduce total component count, design size, weight and at the same time increase & efficiency, productivity, and system reliability. It has a basic
platform well suited for cost effective design in either a flyback converter or a forward converter

Parametrics

Absolute Maximum Ratings
Maximum Drain Voltage (1) VD,MAX 650 V
Drain-Gate Voltage (RGS=1MΩ) VDGR 650 V
Gate-Source (GND) Voltage VGS ±30 V
Drain Current Pulsed (2)IDM 12 ADC
Single Pulsed Avalanche Energy (3)EAS 358 mJ
Continuous Drain Current (TC=25°C) ID 3.0 ADC
Continuous Drain Current (TC=100°C) ID 2.4 ADC
Maximum Supply Voltage VCC,MAX 30 V
Input Voltage Range VFB -0.3 to VSD V
Total Power Dissipation PD 75 W
Total Power Dissipation Darting 0.6 W/°C
Operating Ambient Temperature TA -25 to +85 °C
Storage Temperature TSTG -55 to +150℃

Features

Features
? Precision Fixed Operating Frequency
? KA1L0365R(50kHz), KA1M0365R(67kHz), KA1H0365R(100kHz)
? Pulse by Pulse Over Current Limiting
? Over Load Protection
? Over Voltage Protection (Min. 23V)
? Internal Thermal Shutdown Function
? Under Voltage Lockout
? Internal High Voltage Sense FET
? Auto Restar
