Product Summary
Mechanical Description:The Generation V of Add-A-pak module combine the excellent thermal performance obtained by the usage of
Direct Bonded Copper subsirate with superior mechanical ruggedness, thanks to the insertion of a solid Copper baseplate at the bottom side of the device.
The Cu baseplate allow an easier mounting on the majority of heatsink with increased tolerance of surface roughness and improve thermal spread.
The Generation V of AAP module is manufactured without hard mold, eliminating in this way any possible
direct stress on the leads
Parametrics
VRRM range 400 to 1600 V
TSTG - 40 to 125 ℃
TJ - 40 to125℃
Features
Features
(1)High Voltage;
(2)Industrial Standard Package;
(3)Thick Al metal die and double stick bonding;
(4)Thick copper baseplate;
(5)UL E78996 approved;
(6)3500VRMS isolating voltage
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |

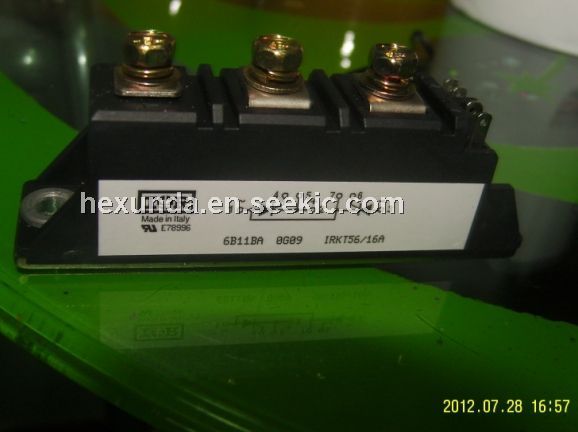

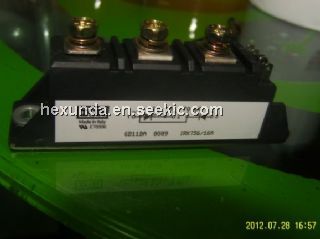

 IRKT56/16A |
|
SCR DBL 2SCR 1600V 60A ADD-A-PAK |
Data Sheet |
Negotiable |
|
||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||
 |
IRKT170-12 |
Vishay Semiconductors |
SCR Modules 1200 Volt 170 Amp |
Data Sheet |
Negotiable |
|
||||
|
IRKT230-16 |
Vishay Semiconductors |
SCR Modules 1600 Volt 230 Amp |
Data Sheet |
Negotiable |
|
||||
|
IRKT250-16 |
Vishay Semiconductors |
SCR Modules 1600 Volt 250 Amp |
Data Sheet |
Negotiable |
|
||||
|
IRKT230-12 |
Vishay Semiconductors |
SCR Modules 1200 Volt 230 Amp |
Data Sheet |
Negotiable |
|
||||
|
IRKT250-14 |
Vishay Semiconductors |
SCR Modules 1400 Volt 250 Amp |
Data Sheet |
Negotiable |
|
||||
|
IRKT152 |
Other |
|
Data Sheet |
Negotiable |
|
||||
