Product Summary
Mechanical Data
Case: JEDEC TO-220AB, ITO-220AB, TO-262AA
molded plastic body
Terminals: Plated leads, solderable per
MIL-STD-750, Method 2026
High temperature soldering guaranteed:
250°C/10 seconds, 0.25" (6.35mm) from case (TO-220AB,
ITO-220AB) at terminals (TO-236AB)
Polarity: As marked Mounting Position: Any
Mounting Torque: 10 in-lbs maximum
Weight: 0.08 oz., 2.24 g
Parametrics
Maximum Ratings (TC = 25°C unless otherwise noted)
Maximum repetitive peak reverse voltage VRRM ：200 V
Working peak reverse voltage VRWM ：200 V
Maximum DC blocking voltage VDC： 200 V
Maximum average forward rectified current Total device IF(AV)： 20A
Maximum average forward rectified current (Fig. 1) Per leg ：IF(AV) ：10A
Peak forward surge current 8.3ms single half sine-wave superimposed on rated load (JEDEC Method) per leg IFSM ：290 A
Peak repetitive reverse current per leg at tp = 2μs, 1KHZ IRRM ：1.0 A
Peak non-repetitive reverse surge energy (8/20μs waveform) ERSM ：20 mJ
Non-repetitive avalanche energy per leg at 25°C, EAS = 2.0A, L=10mH EAS ：20 mJ
Electrostatic discharge capacitor voltage Human body model: C = 100pF, R = 1.5KΩ VC ：25 KV
Voltage rate of change (rated VR) dv/dt ：10,000 V/μs
Operating junction and storage temperature range TJ, TSTG ：–65 to +175 °C
RMS Isolation voltage (MBRF type only) from terminals to heatsink with t = 1 second, RH ≤ 30% VISOL 4500(1) V； 3500(2) V；1500 (3）V
Features
Features
? Plastic package has Underwriters Laboratory Flammability Classification 94V-0
? Dual rectifier construction, positive center tap
? Metal silicon junction, majority carrier conduction
? Low leakage current, Low power loss, High efficiency
? Guardring for overvoltage protection
? For use in high frequency switching power supplies and converters with up to 48V output, free wheeling, and polarity protection applications
? Rated for reverse surge and ESD
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

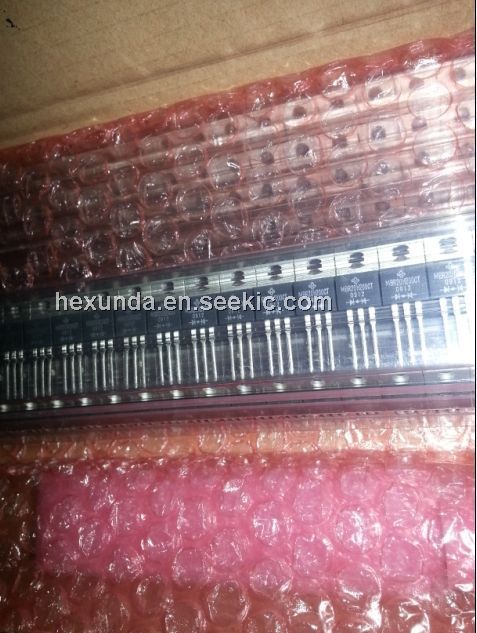

 MBR20H200CT |
Taiwan Semiconductor |
Schottky (Diodes & Rectifiers) 20 Amp 200 Volt Dual |
Data Sheet |
|
|
||||||||||||
 |
MBR20H200CT/45 |
Vishay Semiconductors |
Schottky (Diodes & Rectifiers) 20 Amp 200 Volt Dual Common Cathode |
Data Sheet |
Negotiable |
|
||||||||||||
|
MBR20H200CT-E3/45 |
Vishay Semiconductors |
Schottky (Diodes & Rectifiers) 20 Amp 200 Volt Dual Common Cathode |
Data Sheet |
|
|
||||||||||||
|
MBR20H200CT-1 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
