Product Summary

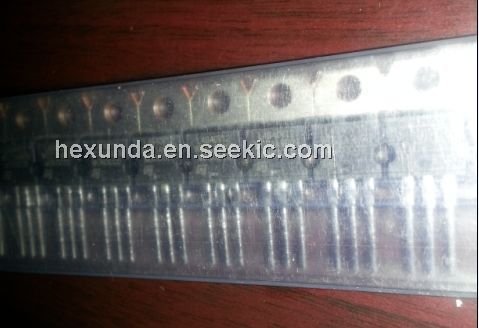

DESCRIPTION:The L4940 series of three terminal positive regulators is available in TO-220 and D2PAK package and with several fixed output voltages,
making it useful in a wide range of industrial and consumer applications. Thanks to its very low input/output voltage drop, these devices are
particularly suitable for battery powered equipments, reducing consumption and prolonging battery life. Each type employs internal current limiting, antisaturation circuit,
thermal shut-down and safe area protection
Parametrics
ABSOLUTE MAXIMUM RATING
VI Forward Input Voltage 30 V
VI R Reverse Input Voltage VO = 5 V RO = 100 Ω - 15 V
VI R Reverse Input Voltage VO = 8.5 V RO = 180 Ω - 15 V
VI R Reverse Input Voltage VO = 10 V RO = 200 Ω - 15 V
VI R Reverse Input Voltage VO = 12 V RO = 240 Ω - 15 V
IO Output Current Internally Limited
Pt o t Power Dissipation Internally Limited
Tj, Tst g Junction and Storage Temperature -40 to 150℃
Features
Feature:
(1) PRECISE 5 V, 8.5 V, 10 V, 12 V OUTPUTS;
(2) LOW DROPOUT VOLTAGE (500 mV typ at 1.5A);
(3) VERY LOW QUIESCENT CURRENT;
(4) THERMAL SHUTDOWN;
(5) SHORT CIRCUIT PROTECTION;
(6) REVERSE POLARITY PROTECTION
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 L4940V12 |
STMicroelectronics |
Low Dropout (LDO) Regulators 12V 1.5A Positive |
Data Sheet |
Negotiable |
|
||||||||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||||||||
|
L4940D2M5-TR |
STMicroelectronics |
Low Dropout (LDO) Regulators 5V 1.5A Positive |
Data Sheet |
Negotiable |
|
||||||||||||
|
L4940D2T5-TR |
STMicroelectronics |
Low Dropout (LDO) Regulators 5.0V 1.5A Positive |
Data Sheet |
|
|
||||||||||||
|
L4940D2T85-TR |
STMicroelectronics |
Low Dropout (LDO) Regulators 8.5V 1.5A Positive |
Data Sheet |
Negotiable |
|
||||||||||||
|
L4940P12 |
STMicroelectronics |
Low Dropout (LDO) Regulators 12V 1.5A Positive |
Data Sheet |
Negotiable |
|
||||||||||||
|
L4940P85 |
STMicroelectronics |
Low Dropout (LDO) Regulators 8.5V 1.5A Positive |
Data Sheet |
Negotiable |
|
||||||||||||
|
L4943 |
STMicroelectronics |
Linear Regulators - Standard 3-Progammable Output |
Data Sheet |
Negotiable |
|
||||||||||||
