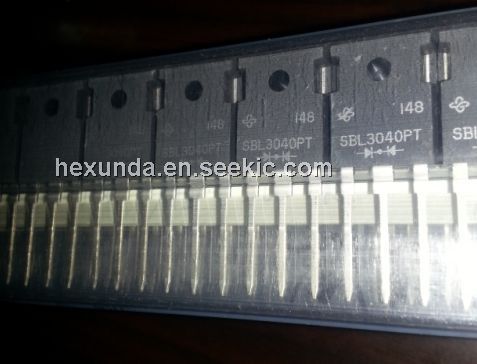

Product Summary

Mechanical Data
Case: Molded Plastic
Terminals: Plated Leads Solderable per MIL-STD-202, Method 208
Polarity: As Marked on Body
Marking: Type Number
Weight:  5.6 grams (approx.)
Mounting Position: Any

Parametrics

Maximum Ratings and Electrical Characteristics
Average Rectified Output Current @ TC = 100℃(Note 1) IO 40 A
Non-Repetitive Peak Forward Surge Current 8.3ms Single half sine-wave superimposed on rated load(JEDEC Method)IFSM 375 A
Forward Voltage Drop @ IF = 20A, TC = 25℃VFM 0.58 0.70 V
Peak Reverse Current @ TC =   25℃  IRM 1.0 mA
at Rated DC Blocking Voltage @ TC = 100℃ 100 mA
Typical Junction Capacitance (Note 2) Cj 800 pF
Typical Thermal Resistance Junction to Case (Note 1) R Jc 1.4 ℃/W
Operating Temperature Range Tj -55 to +125℃
Storage Temperature Range TSTG -55 to +150 ℃

Features

 Features
(1)Schottky Barrier Chip;
(2)Guard Ring Die Construction for Transient Protection;
(3)Low Power Loss, High Efficiency;
(4)High Surge Capability;
(5)High Current Capability and Low Forward Voltage Drop;
(6)For Use in Low Voltage, High Frequency Inverters, Free Wheeling, and Polarity Protection Application;
(7)Plastic Material: UL Flammability Classification Rating 94V-0

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
SBL4030PT
SBL4030PT
Diodes Inc.
Schottky (Diodes & Rectifiers) 40A 30V
Data Sheet
0-1: $1.90
1-10: $1.65
10-100: $1.35
100-250: $1.22
SBL4030PT-E3/45
SBL4030PT-E3/45
Vishay Semiconductors
Schottky (Diodes & Rectifiers) 30 Volt 40 Amp Dual Common-Cathode
Data Sheet
0-1: $1.57
1-10: $1.44
10-50: $1.31
50-100: $1.18
