Product Summary
These voltage regulators are monolithic integrated circuits designed as fixed-voltage regulators for a wide variety of applications including local, on-card regulation. These regulators employ internal current limiting, thermal shutdown, and safe-area compensation. With
adequate heatsinking they can deliver output currents in excess of 1.0 A. Although designed primarily as a fixed voltage regulator, these
devices can be used with external components to obtain adjustable
voltages and currents
Parametrics
MAXIMUM RATINGS (TA = 25°C, unless otherwise noted)
Input Voltage (5.0 - 18 V) VI 35 Vdc
Input Voltage (24 V) VI 40 Vdc
Power Dissipation PD Internally Limited W
Thermal Resistance,Junction-to-Ambient R JA 92 65 Figure 14°C/W
Thermal Resistance,Junction-to-Case R JC 5.0 5.0 5.0 °C/W
Storage Junction Temperature Range Tstg -65 to +150 °C
Operating Junction Temperature TJ +150 ℃
Features
(1) Output Current in Excess of 1.0 A;
(2) No External Components Required;
(3) Internal Thermal Overload Protection;
(4) Internal Short Circuit Current Limiting;
(5) Output Transistor Safe-Area Compensation;
(6) Output Voltage Offered in 2% and 4% Tolerance;
(7) Available in Surface Mount D2 PAK-3, DPAK-3 and Standard 3-Lead Transistor Packages;
(8) NCV Prefix for Automotive and Other Applications Requiring Site and Control Changes;
(9) Pb-Free Packages are Available
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

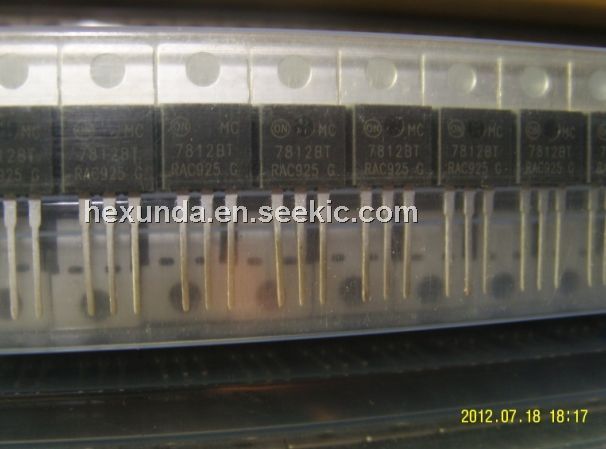

 MC7812BT |
ON Semiconductor |
Linear Regulators - Standard 12V 1A Postive |
Data Sheet |
Negotiable |
|
||||||||||||
|
MC7812BTG |
ON Semiconductor |
Linear Regulators - Standard 12V 1A Postive |
Data Sheet |
|
|
||||||||||||
