Product Summary

? New revolutionary high voltage technology
? Ultra low gate charge
? Periodic avalanche rated
? Extreme dv/dt rated
? Ultra low effective capacitances
? Improved transconductance
? P-TO-220-3-31: Fully isolated package (2500 VAC; 1 minute)

Parametrics

Maximum Ratings
Continuous drain current TC = 25 °C ID 7.6 7.61) A
Continuous drain current TC = 100 °C ID 4.6 4.61) A
Pulsed drain current, tp limited by Tjmax ID puls 22.8 22.8 A
Avalanche energy, single pulse ID=5.5A, VDD=50V EAS 230 230 mJ
Avalanche energy, repetitive tAR limited by Tjmax 2) ID=7.6A, VDD=50V EAR 0.5 0.5
Avalanche current, repetitive tAR limited by Tjmax IAR 7.6 7.6 A
Gate source voltage VGS ±20 ±20 V
Gate source voltage AC (f >1Hz) VGS ±30 ±30
Power dissipation, TC = 25°C Ptot 83 32 W
Operating and storage temperature Tj, Tstg -55...+150 ℃

Features

Feature
? New revolutionary high voltage technology
? Ultra low gate charge
? Periodic avalanche rated
? Extreme dv/dt rated
? Ultra low effective capacitances
? Improved transconductance
? P-TO-220-3-31: Fully isolated package (2500 VAC; 1 minute)

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

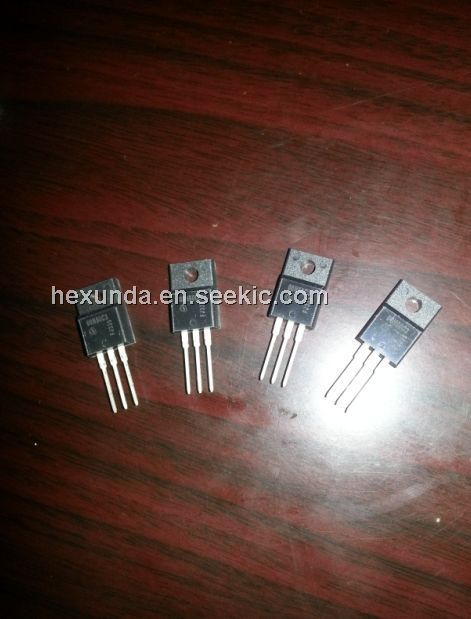

SPA08N50C3
SPA08N50C3
Infineon Technologies
MOSFET COOL MOS N-CH 560V 7.6A
Data Sheet
0-1: $1.01
1-10: $0.81
10-100: $0.73
100-250: $0.57
