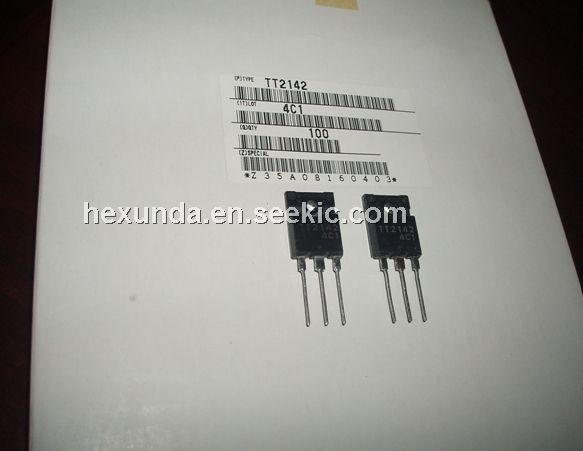

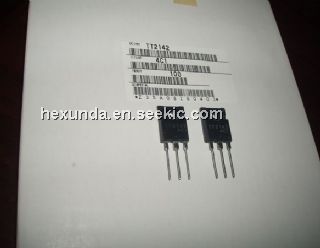

TT2142 - Color TV Horizontal Deflection Output Applications - Sanyo Semicon Device

Parametrics

Absolute Maximum Ratings at Ta=25°C
Collector-to-Base Voltage VCBO 1500 V
Collector-to-Emitter Voltage VCEO 800 V
Emitter-to-Base Voltage VEBO 6 V
Collector Current IC 8A
Collector Current (Pulse) ICP 20 A
Collector Dissipation PC 3.0 W
Collector Dissipation PC Tc=25°C 65 W
Junction Temperature Tj 150 °C
Storage Temperature Tstg --55 to +150 °C

Features

Features
? High speed.
? High breakdown voltage(VCBO=1500V).
? High reliability(Adoption of HVP process).
? Adoption of MBIT process.
? On-chip damper diode
