Product Summary
Applications
High Efficiency Synchronous Rectification in SMPS
Uninterruptible Power Supply
High Speed Power Switching
Hard Switched and High Frequency Circuits
Parametrics
Absolute Maximum Ratings
ID @ TC = 25°C Continuous Drain Current, VGS @ 10V (Silicon Limited):79A
ID @ TC = 100°C Continuous Drain Current, VGS @ 10V (Silicon Limited:56A
ID @ TC = 25°C Continuous Drain Current, VGS @ 10V (Wire Bond Limited:56A
IDM Pulsed Drain Current :315 A
PD @TC = 25°C Maximum Power Dissipation:110W
Linear Derating Factor:0.76W/℃
VGS Gate-to-Source Voltage：±20 V
dv/dt Peak Diode Recovery ：:2V/ns
TJ Operating Junction and TSTG Storage Temperature Range: -55 to + 175℃
Soldering Temperature, for 10 seconds(1.6mm from case)：３００
Features
Benefits
Improved Gate, Avalanche and Dynamic dv/dt Ruggedness
Fully Characterized Capacitance and Avalanche SOA
Enhanced body diode dV/dt and dI/dt Capability
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

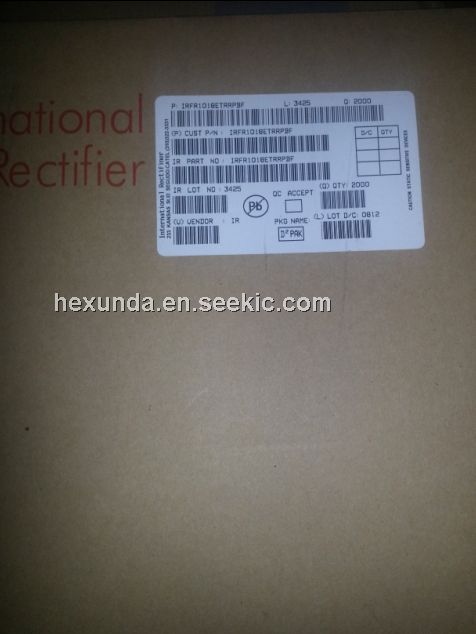

 IRFR1018ETRRPBF |
International Rectifier |
MOSFET |
Data Sheet |
|
|
||||||||
