Product Summary

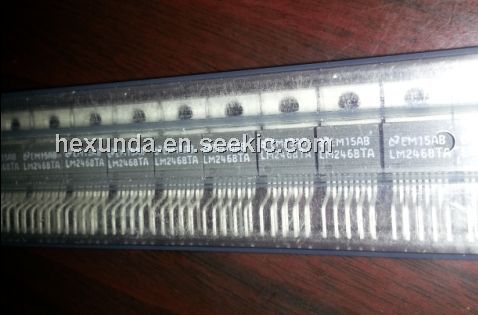

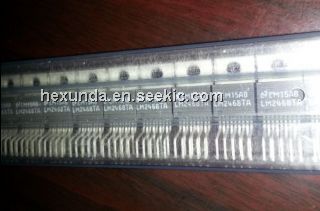

General Description:The LM2468 is an integrated high voltage CRT driver circuit designed for use in color monitor applications. The IC contains three high input impedance wide band amplifiers,
which directly drive the RGB cathodes of a CRT. Each channel has its gain internally set to -20 and can drive CRT capacitive loads as well as resistive loads present in other
applications, limited only by the package’s power dissipation. The IC is packaged in an industry standard 9 lead TO-220
molded plastic package
Parametrics
Absolute Maximum Ratings (Notes 1, 3)
If Military/Aerospace specified devices are required,
please contact the National Semiconductor Sales Office/
Distributors for availability and specifications.
Supply Voltage, VCC +90V
Bias Voltage, VBB +16V
Input Voltage, VIN 0V to 4.5V
Storage Temperature Range, TSTG -65℃ to +150℃
Lead Temperature (Soldering, <10sec.) 300℃
ESD Tolerance, Human Body Model 2kV
Features
Features
(1) Higher gain to accommodate CMOS preamplifiers;
(2) 0V to 3.75V input range;
(3) Stable with 0-20pF capacitive loads and inductive peaking networks; (
4) Matched to the LM126X series preamplifier and LM2479/2480 bias clamp;
(5) Maintains standard LM243X Family Pinout which is designed for easy PCB layout;
(6) Convenient TO-220 staggered 9 lead package style
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 LM2468TA/NOPB |
|
IC CRT DVR TRIPLE 14NS TO220-9 |
Data Sheet |
Negotiable |
|
||||
