Product Summary

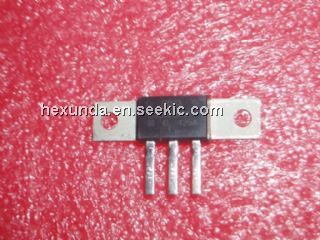

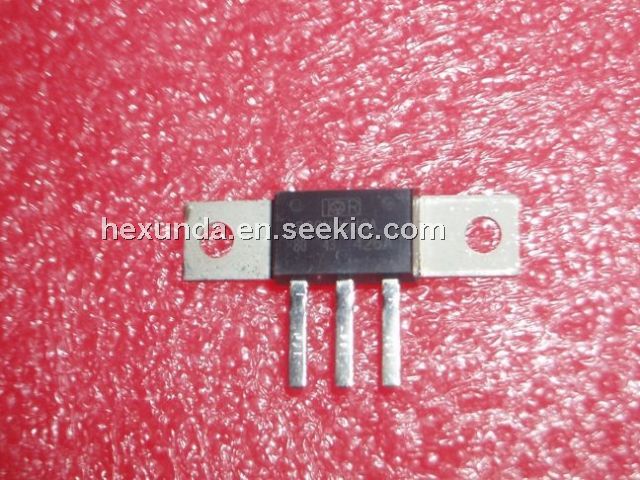

The 83CNQ...A center tap Schottky rectifier module series
has been optimized for low reverse leakage at high temperature. The proprietary barrier technology allows for reliable
operation up to 175 °C junction temperature. Typical applications are in switching power supplies, converters, freewheeling diodes, and reverse battery protection
Parametrics
Absolute Maximum Ratings:
IF(AV) Max. Average Forward Current 80 A 50% duty cycle @ TC = 132 °C, rectangular wave form
IFSM Max. Peak One Cycle Non-Repetitive 7000A ,5μs Sine or 3μs Rect. pulse ,Following any rated load condition and with rated VRRM applied.
IFSM Surge Current (Per Leg) * See Fig. 7: 720A, 10ms Sine or 6ms Rect. pulse,Following any rated load condition and with rated VRRM applied.
EAS Non-Repetitive Avalanche Energy 15 mJ TJ = 25 °C, IAS = 1 Amps, L = 30 mH
IAR Repetitive Avalanche Current 1 A Current decaying linearly to zero in 1 μsec(Per Leg) Frequency limited by TJ max. VA = 1.5 x VR typical
Features
Features:
175 °C TJ operation
Center tap module
High purity, high temperature epoxy encapsulation for enhanced mechanical strength and moisture resistance
Low forward voltage drop
High frequency operation
Guard ring for enhanced ruggedness and long term reliability
New fully transfer-mold low profile, small footprint, high current package.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 83CNQ080A |
Vishay Semiconductors |
Schottky (Diodes & Rectifiers) 80 Amp 80 Volt Common Cathode |
Data Sheet |
|
|
||||||||||
 |
83CNQ080APBF |
|
DIODE SCHOTTKY 80V 40A D61-8 |
Data Sheet |
|
|
||||||||||
 |
83CNQ080ASL |
Vishay Semiconductors |
Schottky (Diodes & Rectifiers) 80 Amp 80 Volt Common Cathode |
Data Sheet |
|
|
||||||||||
 |
83CNQ080ASM |
Vishay Semiconductors |
Schottky (Diodes & Rectifiers) 80 Amp 80 Volt Common Cathode |
Data Sheet |
|
|
||||||||||
