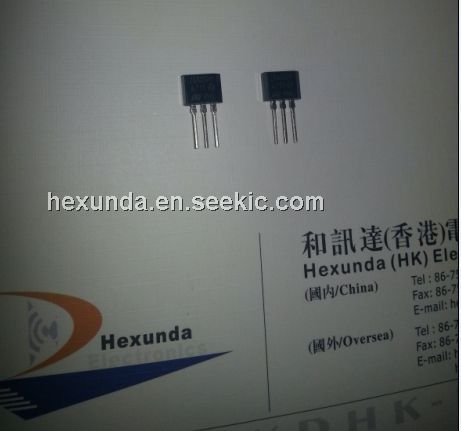

Product Summary

Description:The Z04 series is suitable for general purpose AC switching applications. They can be found in applications such as home appliances (electrovalve, pump, door lock, small lamp control), fan speed controllers,...
Different gate current sensitivities are available, allowing optimized performances when controlled directly from microcontrollers

Parametrics

 Absolute maximum ratings:
IT(RMS) RMS on-state current (full sine wave)Tamb = 25° C:4 A
IT(RMS) RMS on-state current (full sine wave)Tl = 30° C:4 A
ITSM Non repetitive surge peak on-state current F = 50 Hz t = 20 ms :20A
ITSM (full cycle, Tj initial = 25° C)F = 60 Hz t = 16.7 ms :21A
I2t I2t Value for fusing tp = 10 ms: 2.2 A2s
dI/dtCritical rate of rise of on-state current IG = 2 x IGT , tr≤ 100 nsF = 120 Hz Tj = 125° C :20 A/μs
IGM Peak gate current tp = 20 μs Tj = 125° C :1.2 A
PG(AV) Average gate power dissipation Tj = 125° C: 0.2 W
Tstg Storage junction temperature range :- 40 to + 150℃
Tj Operating junction temperature range:- 40 to + 125 ℃

Features

Main features:
IT(RMS):4 A
VDRM/VRRM: 600 to 800 V
IGT (Q1):3 to 25 mA

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
Z0405MF 1AA2
Z0405MF 1AA2
STMicroelectronics
Triacs 4.0 Amp 600 Volt
Data Sheet
0-940: $0.36
940-1000: $0.32
1000-2000: $0.31
2000-5000: $0.29
