Product Summary
Description:
Powerex IGBTMOD? Modules
are designed for use in switching
applications. Each module consists
of one IGBT Transistor in a single
configuration with a reverse-connected super-fast recovery freewheel diode. All components and
interconnects are isolated from the
heat sinking baseplate, offering
simplified system assembly and
thermal management
Parametrics
Absolute Maximum Ratings, Tj= 25 °C unless otherwise specifie
Junction Temperature Tj-40 to 150 °C
Storage Temperature Tstg -40 to 125 °C
Collector-Emitter Voltage (G-E SHORT) VCES 1200 Volts
Gate-Emitter Voltage (C-E SHORT) VGES ±20 Volts
Collector Current (Tc = 25°C) IC 400 Amperes
Peak Collector Current (Tj ≤ 150°C) ICM 800* Amperes
Emitter Current** (Tc = 25°C) IE 400 Amperes
Peak Emitter Current** IEM 800* Amperes
Maximum Collector Dissipation (Tc = 25°C) Pc 1600 Watts
Mounting Torque, M8 Main Terminal – 95 in-lb
Mounting Torque, M6 Mounting – 40 in-lb
Mounting Torque, M4 Terminal – 15 in-lb
Weight – 450 Grams
Isolation Voltage (Main Terminal to Baseplate, AC 1 min.) Viso 2500 Volts
Features
Features:
(1) Low Drive Power;
(2) Low VCE(sat);
(3) Discrete Super-Fast RecoveryFree-Wheel Diode;
(4) Isolated Baseplate for EasyHeat Sinking
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

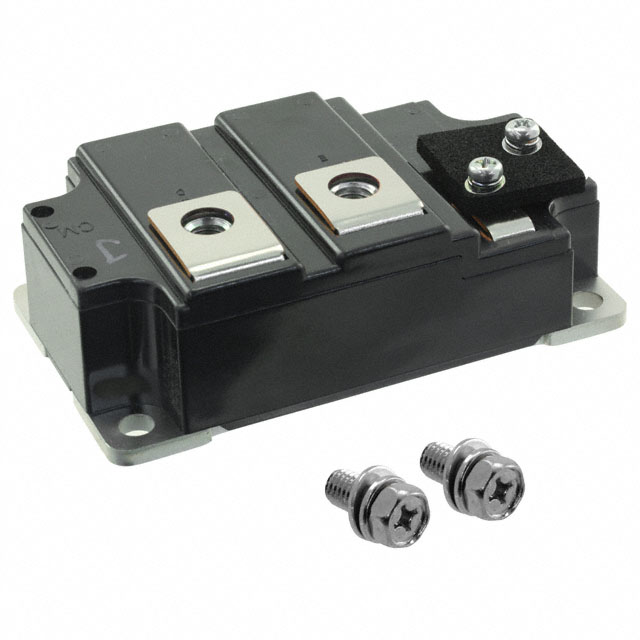

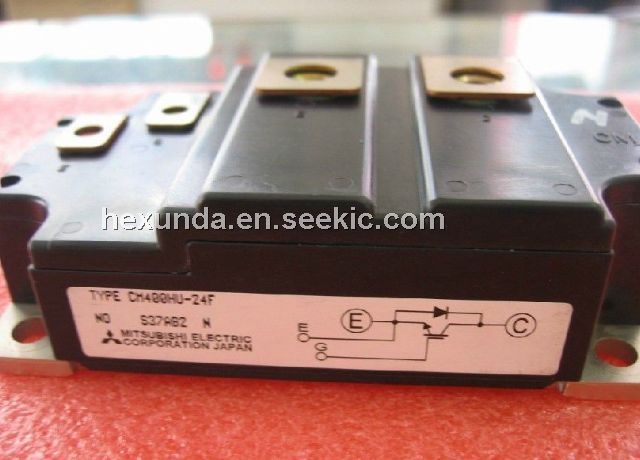

 CM400HU-24F |
|
IGBT MOD SGL 1200V 400A F SER |
Data Sheet |
|
|
||||||||||||||||
