Product Summary
Applications
Antiparallel diode for high frequency switching devices
Anti saturation diode
Snubber diode
Free wheeling diode in converters and motor control circuits
Rectifiers in switch mode power
supplies (SMPS)
Inductive heating and melting
Uninterruptible power supplies (UPS)
Ultrasonic cleaners and welders
Parametrics
Maximum Ratings
IFRMS TC = 135°C; rectangular, d = 0.5 35 A
IFAVM TC = 135°C; rectangular, d = 0.5 10 A
IFSM TVJ = 45°C; tp = 10 ms (50 Hz), sine 50 A
EAS TVJ = 25°C; non-repetitive IAS = 0.9 A; L = 180 μH :0.1 mJ
IAR VA = 1.5·VR typ.; f = 10 kHz; repetitive 0.1 A
TVJ -55...+175 °C
TVJM 175 °C
Tstg -55...+150 °C
Ptot TC = 25°C 60 W
Md mounting torque 0.4...0.6 Nm
Weight typical 2 g
Features
Features
(1)International standard package JEDEC TO-247 AD;
(2)Planar passivated chips;
(3)Very short recovery time;
(4)Extremely low switching losses;
(5)Low IRM -values;
(6)Soft recovery behaviour;
(7)Epoxy meets UL 94V-0
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |

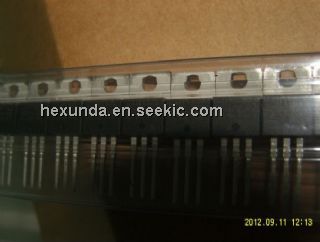

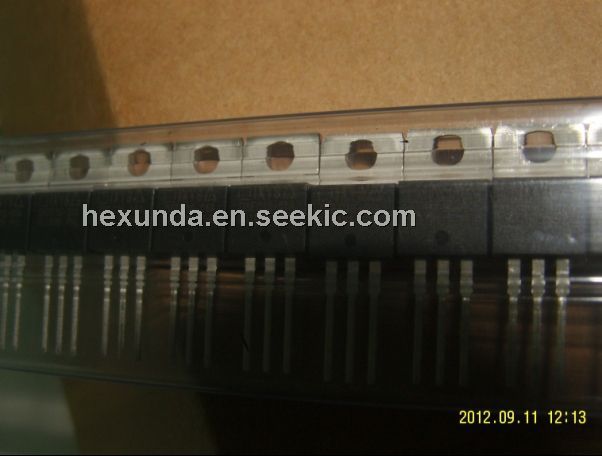

 DSEC16-06A |
Ixys |
Rectifiers 16 Amps 600V |
Data Sheet |
Negotiable |
|
||||
 |
DSEC16-06AC |
Ixys |
Rectifiers 2X8 Amps 600V 1.42 Rds |
Data Sheet |
Negotiable |
|
||||
