Product Summary

DESCRIPTION:The third generation of MESH OVERLAY? Power MOSFETs for very high voltage exhibits unsurpassed on-resistance per unit area while integrating back-to-back Zener diodes between gate and
source. Such arrangement gives extra ESD capability with higher ruggedness performance as requested by a large variety of single-switch
applications

Parametrics

ABSOLUTE MAXIMUM RATINGS
VDS Drain-source Voltage (VGS = 0) 700 V
VDGR Drain-gate Voltage (RGS = 20 kΩ) 700 V
VGS Gate- source Voltage ± 25 V
ID Drain Current (continuos) at TC = 25°C 2.3 A
ID Drain Current (continuos) at TC = 100°C 1.45 A
IDM (l) Drain Current (pulsed) 9.2 A
PTOT Total Dissipation at TC = 25°C 55 W
Derating Factor 0.44 W/°C
IGS Gate-source Current (DC) ±50 mA
VESD(G-S) Gate source ESD(HBM-C=100pF, R=1.5KΩ) 1.5 KV
dv/dt (1) Peak Diode Recovery voltage slope 3 V/ns
Tstg Storage Temperature –65 to 150 °C
Tj Max. Operating Junction Temperature 150  °C

Features

(1) TYPICAL RDS(on) = 4.1Ω;
(2) EXTREMELY HIGH dv/dt AND CAPABILITY GATE TO - SOURCE ZENER DIODES;
(3) 100% AVALANCHE TESTED;
(4) VERY LOW GATE INPUT RESISTANCE;
(5) GATE CHARGE MINIMIZED

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

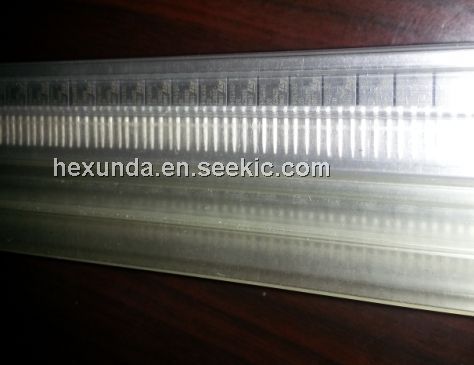

STD2NC70Z-1
STD2NC70Z-1
Other

Data Sheet
Negotiable
