Product Summary

Feature
? New revolutionary high voltage technology
? Ultra low gate charge
? Periodic avalanche rated
? Extreme dv/dt rated
? High peak current capability
? Improved transconductance
? P-TO-220-3-31: Fully isolated package (2500 VAC; 1 minute）

Parametrics

Maximum Rating
Continuous drain current
ID TC = 25 °C 11 111) A
ID TC = 100 °C 7 71) A
Pulsed drain current, tp limited by Tjmax ID puls 33 33 A
Avalanche energy, single pulse ID=5.5A, VDD=50V EAS 340 340 mJ
Avalanche energy, repetitive tAR limited by Tjmax 2) ID=11A, VDD=50V EAR 0.6 0.6
Avalanche current, repetitive tAR limited by Tjmax IAR 11 11 A
Gate source voltage static VGS ±20 ±20 V
Gate source voltage AC (f >1Hz) VGS ±30 ±30
Power dissipation, TC = 25°C Ptot 125 33 W
Operating and storage temperature Tj, Tstg -55...+150℃

Features

Feature
? New revolutionary high voltage technology
? Ultra low gate charge
? Periodic avalanche rated
? Extreme dv/dt rated
? High peak current capability
? Improved transconductance
? P-TO-220-3-31: Fully isolated package (2500 VAC; 1 minute）

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

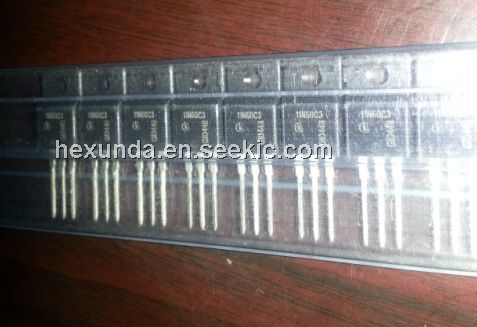

SPA11N60C3
SPA11N60C3
Infineon Technologies
MOSFET COOL MOS N-CH 600V 11A
Data Sheet
0-1: $1.88
1-10: $1.76
10-100: $1.40
100-500: $0.78
